Two nozzles bottle filler

FG2100

When one tabletop liquid filling machine is not enough to meet market needs, we always suggest our customers buy one more filling machine from us in order to increase productivity. But when we visit our customers’ factory, we often see the operator only can use a filling machine at a time. What if we design a new type of two nozzles filling machine to solve this problem? We do care about the smoothness of producing progress so we design a 2-nozzle gear pump filling machine. It has a working table and is capable to fill two products at the same time. After you fill products at the right hand side of this filling machine, you can do capping and labeling on the working table which is in the middle then you can pack them on the left hand side.

double nozzle bottle filling machine,dual heand bottle filling machine,bottle filling machine for cleanser

We believe this double nozzle bottle filling machine can give customers a space for doing other things like capping and labeling. If you want a label applicator, you may buy it and put it on the working table to help you do labeling. The platform for putting carton on the left hand side may take off if you don’t need it. It’s possible to become a complete semi automatic production line with this machine if you buy capping machine and labeling machine from us. The operation of double nozzle bottle filling machine is simple. All you need to do is set up parameters, turn to semi-auto mode or automatic mode then step on foot pedal or press the start button.
Features

Two-nozzle design doubles the speed.
Gear pumps are positioned beneath a working table.
Achieve high speed and accuracy.
Its shut-off nozzle design prevents liquid dripping.
Make speed, volume, and interval-time easily adjustable.
Multiple filling modes, test/manual/automatic, make easy maneuver.
Comes with convenient foot pedal.
Its entire frame is made of SUS#304 that meets cGMP standard.
Nozzles and all critical parts are made of SUS#316.
Equipped with Emergency stop button to enhance safe handling.

Specification
  • Filling range 5-4000ml
  • Filling speed 50-250ml/sec
  • Filling accuracy ±0.5%~1%
  • (Subject to Liquid Type and Filling Speed)
  • Power supply 110 or 220VAC; single phase
  • Machine dimension (L)1550mm(W)400mm(H) 1300mm
Option Accessories
  • Automatic pneumatic shut-off nozzle
  • Customized stain-less steel source hopper
  • PLC & HMI control system
Introduce Movies

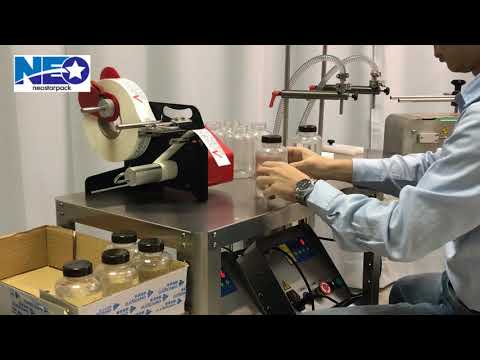

double nozzle bottle filling machine
